20CTQ045, 20CTQ035, SCHOTTKY RECTIFIER

SCHOTTKY RECTIFIER Bulletin PD-20056 rev.C 07/06 20CTQ 20CTQS 20CTQ -1 20 Amp IF(AV) = 20Amp VR = 35/ 45V Major Ratings and Characteristics Chara.
Features The 20CTQ center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature.

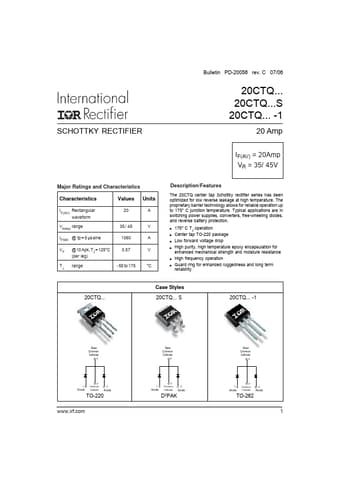

datasheet Preview Page 1 from Datasheet4u.com

20CTQ035-InternationalRectifier.pdf

20CTQ045 Datasheet Preview — This datasheet PDF includes multiple part numbers: 20CTQ045, 20CTQ035. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

20CTQ045, 20CTQ035

Manufacturer:

International Rectifier

File Size:

322.70 KB

Description:

SCHOTTKY RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: 20CTQ045, 20CTQ035.
Please refer to the document for exact specifications by model.

Applications

* are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection. 175° C TJ operation Center tap TO-220 package Low forward voltage drop High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance High frequency operatio
