HFA140NH60R - soft recovery diode

HFA140NH60R Description

www.DataSheet4U.com PD -2.446 rev.B 03/99 HFA140NH60R HEXFRED .
HEXFRED diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems.

HFA140NH60R Features

* • Reduced RFI and EMI • Reduced Snubbing • Extensive Characterization of Recovery Parameters TM Ultrafast, Soft Recovery Diode LUG TERMINAL CATHODE a d BASE ANODE VR = 600V VF(typ. )
* = 1.3V IF(AV) = 140A Qrr (typ. ) = 490nC IRRM(typ. ) = 9.3A trr(typ. ) = 39ns di(rec)M/dt (typ. )
* = 200A/µs

HFA140NH60R Applications

* These devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses. TM HALF-PAK Absolute Maximum Ratings (per Leg) Parameter VR IF @ TC = 25°C IF @ TC = 100°C IFSM EAS PD @ TC = 25°C PD @ TC = 100°C TJ TST

📥 Download Datasheet

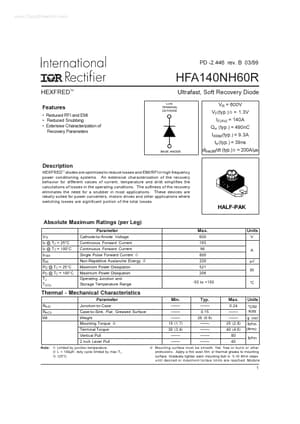

Preview of HFA140NH60R PDF
datasheet Preview Page 2 datasheet Preview Page 3
