HFA30TA60CS - Soft Recovery Diode

HFA30TA60CS Description

www.DataSheet4U.com Bulletin PD-20374 01/01 HFA30TA60CS HEXFRED .
International Rectifier's HFA30TA60CS is a state of the art center tap ultra fast recovery diode.

HFA30TA60CS Features

* Ultrafast Recovery Ultrasoft Recovery Very Low IRRM Very Low Qrr Specified at Operating Conditions TM Ultrafast, Soft Recovery Diode 2 VR = 600V VF(typ. )
* = 1.2V IF(AV) = 15A Qrr (typ. )= 80nC IRRM (typ. ) = 4.0A 1 3 trr(typ. ) = 19ns di(rec)M/dt (

HFA30TA60CS Applications

* in power supplies and power conversion systems (such as inverters), motor drives, and many other similar applications where high speed, high efficiency is needed. D2Pak Absolute Maximum Ratings (per Leg) Parameter VR IF @ TC = 100°C IFSM IFRM PD @ TC = 25°C PD @ TC = 100°C TJ TSTG Cathode-to-Anode

📥 Download Datasheet

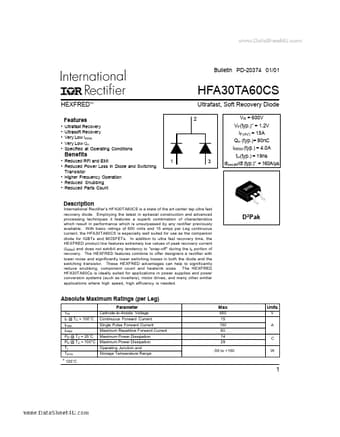

Preview of HFA30TA60CS PDF
datasheet Preview Page 2 datasheet Preview Page 3
