HFA30PA40C - Ultrafast Soft Recovery Diode

HFA30PA40C Description

SEMICONDUCTOR HFA30PA40C RRooHHSS Nell High Power Products FRED Ultrafast Soft Recovery Diode 2 x 15A / 400V .
HFA30PA40C is a state of the art center tap ultrafast recovery diode.

HFA30PA40C Features

* Ultrafast recovery time Very low leakage current Very low Qrr Specified at operating conditions Designed and qualified for industrial level Planar FRED Chip 175°C operating junction temperature BENEFITS Reduced RFI and EMI Reduced power loss in diode and switching transistor Higher frequency operati

HFA30PA40C Applications

* in power conversion systems (such as inverters), motor drives, and many other similar applications where high speed, high efficiency is needed. 13 Anode 1 2 Anode 2 Common cathode PRODUCT SUMMARY VR VF at 15A at 25 °C IF(AV) trr (typical) TJ (maximum) Qrr (typical) lRRM (typical) 400 V 1.3 V

📥 Download Datasheet

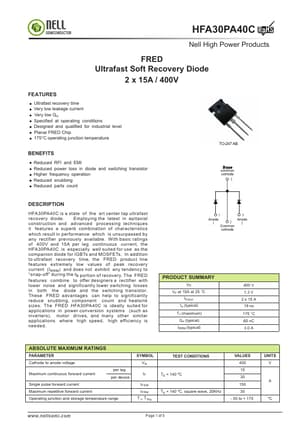

Preview of HFA30PA40C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HFA30PA40C
Manufacturer
nELL
File Size
395.48 KB
Datasheet
HFA30PA40C-nELL.pdf
Description
Ultrafast Soft Recovery Diode
