HFA60PA60C, Ultrafast Soft Recovery Diode

SEMICONDUCTOR HFA60PA60C RRooHHSS Nell High Power Products FRED Ultrafast Soft Recovery Diode 2 x 30A / 600V .
HFA60PA60C is a state of the art center tap ultrafast recovery diode.

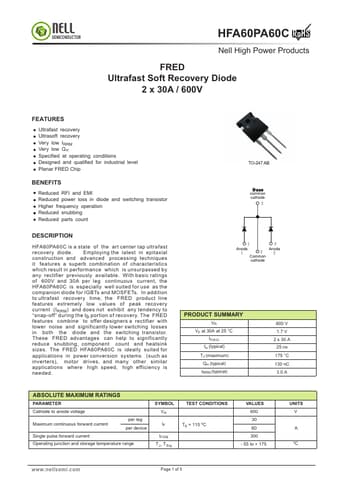

datasheet Preview Page 1 from Datasheet4u.com

HFA60PA60C-nELL.pdf

HFA60PA60C Datasheet Preview — Preview of HFA60PA60C PDF

Datasheet Details

Part number:

HFA60PA60C

Manufacturer:

nELL

File Size:

384.61 KB

Description:

Ultrafast Soft Recovery Diode

Features

* Ultrafast recovery Ultrasoft recovery Very low IRRM Very low Qrr Specified at operating conditions Designed and qualified for industrial level Planar FRED Chip BENEFITS Reduced RFI and EMI Reduced power loss in diode and switching transistor Higher frequency operation Reduced snubbing Reduced parts

Applications

* in power conversion systems (such as inverters), motor drives, and many other similar applications where high speed, high efficiency is needed. TO-247 AB common cathode 2 13 Anode 1 2 Anode 2 Common cathode PRODUCT SUMMARY VR VF at 30A at 25 °C IF(AV) trr (typical) TJ (maximum) Qrr (typical)
