HFA60MB60C - Soft Recovery Diode

HFA60MB60C Description

www.DataSheet4U.com PD -2.462 rev.A 03/99 HFA60MB60C HEXFRED .
HEXFRED diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems.

HFA60MB60C Features

* • Reduced RFI and EMI • Reduced Snubbing • Extensive Characterization of Recovery Parameters TM Ultrafast, Soft Recovery Diode (ISOLATED BASE) (1-3) ANODE 1 (4-6) (7-9) ANODE 2 COMMON CATHODE VR = 600V VF(typ. )
* = 1.1V IF(AV) = 60A Qrr (typ. ) = 200nC IRRM(typ. ) = 6A trr(typ. ) = 30ns di(rec

HFA60MB60C Applications

* These devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses. TM Absolute Maximum Ratings (per Leg) Parameter VR IF @ TC = 25°C IF @ TC = 100°C IFSM EAS PD @ TC = 25°C PD @ TC = 100°C TJ TSTG Cathode-

📥 Download Datasheet

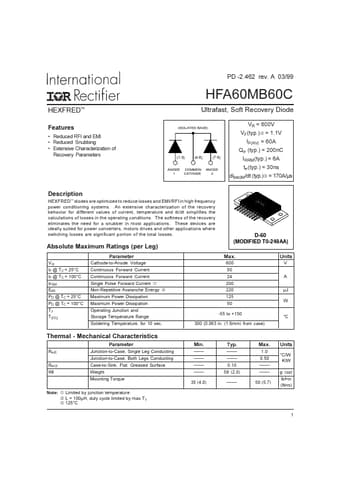

Preview of HFA60MB60C PDF
datasheet Preview Page 2 datasheet Preview Page 3
