HFA45HI60C

Soft Recovery Diode

HFA45HI60C Features

* Dual common cathode configuration

* Reduced RFI and EMI

* Reduced snubbing

* Extensive characterization of recovery parameters

* Hermetic package

* Ceramic eyelets PD-20380D Product Summary

* VR (per leg): 600V

* VF: 1.47V

* Qrr : 270nC

* di(rec)M/dt : 400A

HFA45HI60C General Description

These ultrafast, soft recovery diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive characterization of the recovery behavior for different values of current, temperature and di/dt simplifies the calculations of losses in the operating conditio.

HFA45HI60C Datasheet (691.89 KB)

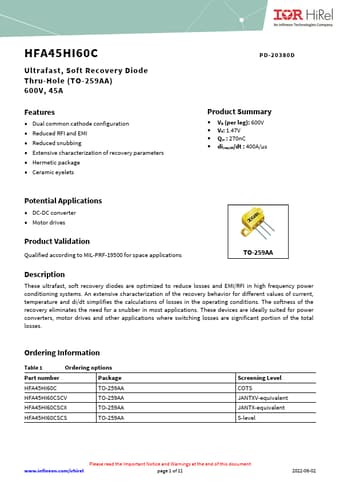

Preview of HFA45HI60C PDF

Datasheet Details

Part number:

HFA45HI60C

Manufacturer:

International Rectifier

File Size:

691.89 KB

Description:

Soft recovery diode.
