IPS2041RPBF, IPS2041LPBF INTELLIGENT POWER LOW SIDE SWITCH

International Rectifier

Description

www.DataSheet4U.com Data Sheet No.PD60297 IPS2041(R)(L)PbF INTELLIGENT POWER LOW SIDE SWITCH .
The IPS2041(R)(L)PbF is a three terminal Intelligent Power Switch (IPS) that features a low side MOSFET with over-current, over-temperature, ESD prote.

📥 Download Datasheet

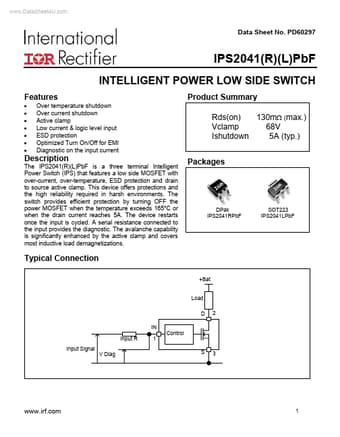

IPS2041RPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: IPS2041RPBF, IPS2041LPBF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IPS2041RPBF, IPS2041LPBF
Manufacturer: International Rectifier
File Size: 1.47 MB
Datasheet: IPS2041LPBF_InternationalRectifier.pdf
Description: INTELLIGENT POWER LOW SIDE SWITCH
Note: This datasheet PDF includes multiple part numbers: IPS2041RPBF, IPS2041LPBF.
Please refer to the document for exact specifications by model.

Features

* Over temperature shutdown Over current shutdown Active clamp Low current & logic level input ESD protection Optimized Turn On/Off for EMI Diagnostic on the input current Product Summary Rds(on) 130mΩ (max. ) Vclamp 68V Ishutdown 5
