IPS2050HQ-32, IPS2050H - high-side switch

IPS2050HQ-32 Description

IPS2050H, IPS2050H-32 IPS2050HQ, IPS2050HQ-32 High efficiency, high-side switch with extended diagnostics and smart driving for capacitive loads Pro.
The IPS2050H/HQ and IPS2050H-32/HQ-32 are dual high-side switch ICs able to drive capacitive, resistive or inductive loads with one side connected to.

IPS2050HQ-32 Features

* 8 V to 60 V operating supply voltage range
* Operating output current: 2.4 A (IPS2050H/HQ) or 5.6 A (IPS2050H-32/HQ-32) per channel
* Smart driving of capacitive load
* Fast demagnetization of inductive loads
* Under-voltage lock-out
* VCC ove

IPS2050HQ-32 Applications

* Programmable logic control
* Vending machines
* Industrial PC peripheral input/output
* Numerical control machines

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IPS2050HQ-32, IPS2050H. Please refer to the document for exact specifications by model.

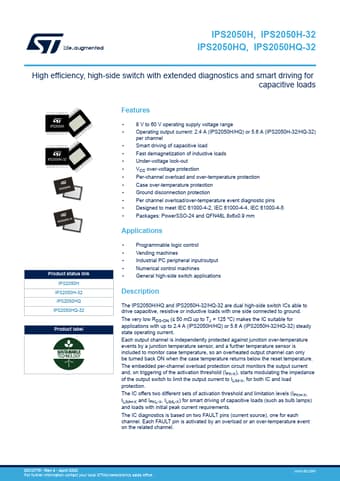

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IPS2050HQ-32, IPS2050H
Manufacturer
STMicroelectronics ↗
File Size
2.02 MB
Datasheet
IPS2050H-STMicroelectronics.pdf
Description
high-side switch
Note
This datasheet PDF includes multiple part numbers: IPS2050HQ-32, IPS2050H.
Please refer to the document for exact specifications by model.
