IR2010PBF, IR2010, High and Low Side Driver

IR2010(S)PBF High and Low Side Driver .
Package Options The IR2010 is a high power, high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced outp.

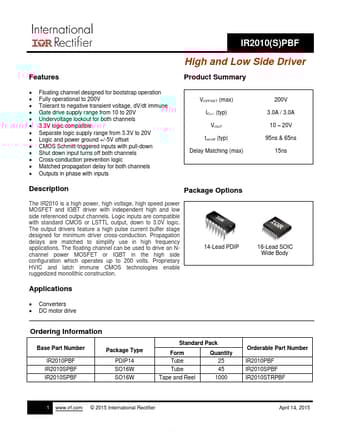

datasheet Preview Page 1 from Datasheet4u.com

IR2010-InternationalRectifier.pdf

IR2010PBF Datasheet Preview — This datasheet PDF includes multiple part numbers: IR2010PBF, IR2010. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IR2010PBF, IR2010

Manufacturer:

International Rectifier

File Size:

2.24 MB

Description:

High and Low Side Driver

Note:

This datasheet PDF includes multiple part numbers: IR2010PBF, IR2010.
Please refer to the document for exact specifications by model.

Features

* Product Summary
* Floating channel designed for bootstrap operation
* Fully operational to 200V
* Tolerant to negative transient voltage, dV/dt immune
* Gate drive supply range from 10 to 20V
* Undervoltage lockout for both channels
* 3.3V logic compatible
* Separate lo

Applications

* The floating channel can be used to drive an Nchannel power MOSFET or IGBT in the high side configuration which operates up to 200 volts. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. 14-Lead PDIP 16-Lead SOIC Wide Body Applications
* Convert
