IR2011 High and Low Side Driver

International Rectifier

Description

IR2011(S)PBF High and Low Side Driver .
The IR2011 is a high power, high speed power MOSFET driver with independent high and low side referenced output Package Options channels.

📥 Download Datasheet

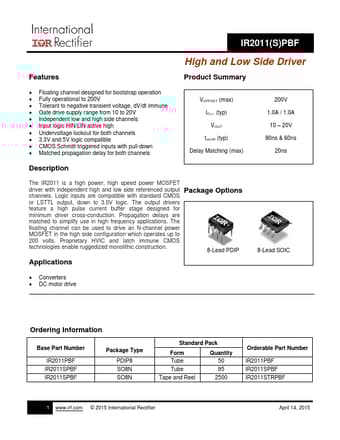

IR2011 Datasheet Preview — Preview of IR2011 PDF

Datasheet Specifications

Part number: IR2011
Manufacturer: International Rectifier
File Size: 1.27 MB
Datasheet: IR2011_InternationalRectifier.pdf
Description: High and Low Side Driver

Features

* Product Summary
* Floating channel designed for bootstrap operation
* Fully operational to 200V
* Tolerant to negative transient voltage, dV/dt immune
* Gate drive supply range from 10 to 20V
* Independent low and high side channels
* Input logic HIN/LIN active high
* U

Applications

* The floating channel can be used to drive an N-channel power MOSFET in the high side configuration which operates up to 200 volts. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. 8-Lead PDIP Applications 8-Lead SOIC
* Converters
* DC mo
