IR21064SPBF - HIGH AND LOW SIDE DRIVER

International Rectifier

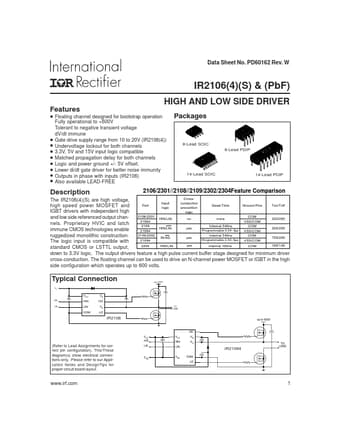

IR21064SPBF Datasheet Preview — Preview of IR21064SPBF PDF

Datasheet Details

Part number	IR21064SPBF
Manufacturer	International Rectifier ↗
File Size	245.76 KB
Description	HIGH AND LOW SIDE DRIVER
Datasheet	IR21064SPBF_InternationalRectifier.pdf

IR21064SPBF Product details

Description

2106/2301//2108//2109/2302/2304Feature Comparison CrossThe IR2106(4)(S) are high voltage, Input conduction Dead-Time Ground Pins Ton/Toff Part high speed power MOSFET and prevention logic IGBT drivers with independent high logic 2106/2301 COM and low side referenced output chanHIN/LIN no none 220/200 21064 VSS/COM nels.Proprietary HVIC and latch 2108 Internal 540ns COM HIN/LIN yes 220/200 immune CMOS technologies enable Programmable 0.54~5µs 21084 VSS/COM 2109/2302 Internal 540ns COM ruggediz

Features

Floating channel designed for bootstrap operation.
Packages Fully operational to +600V Tolerant to negative transient voltage dV/dt immune Gate drive supply range from 10 to 20V (IR2106(4)) Undervoltage lockout for both channels 3.3V, 5V and 15V input logic compatible Matched propagation delay for both channels Logic and power ground +/- 5V offset. Lower di/dt gate driver for better noise immunity Outputs.
