IR2106PBF - HIGH AND LOW SIDE DRIVER

International Rectifier

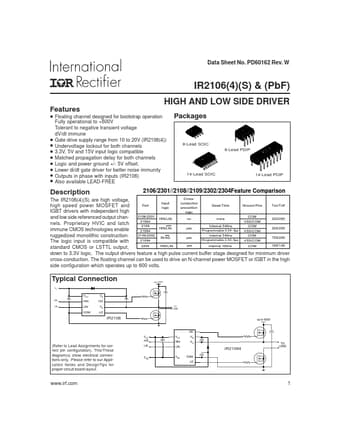

IR2106PBF Datasheet Preview — Preview of IR2106PBF PDF

Datasheet Details

Part number	IR2106PBF
Manufacturer	International Rectifier ↗
File Size	247.98 KB
Description	HIGH AND LOW SIDE DRIVER
Datasheet	IR2106PBF_InternationalRectifier.pdf

IR2106PBF Product details

Description

2106/2301//2108//2109/2302/2304Feature Comparison The IR2106(4)(S) are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels.Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction.The logic input is compatible with standard CMOS or LSTTL output, Part Input logic 2106/2301 21064 2108 21084 2109/2302 21094 2304 HIN/LIN HIN/LIN IN/SD HIN/LIN Crossconduction prevention logic no yes yes yes

Features

Floating channel designed for bootstrap operation Fully operational to +600V Packages Tolerant to negative transient voltage dV/dt immune.
Gate drive supply range from 10 to 20V (IR2106(4)).
Undervoltage lockout for both channels.
3.3V, 5V and 15V input logic compatible.
Matched propagation delay for both channels.
Logic and power ground +/- 5V offset.
Lower di/dt gate driver for better noise immunity.
Outputs in phase.
