IR2110SPBF, HIGH AND LOW SIDE DRIVER

Data Sheet No.PD60147 rev.V IR2110(S)PbF/IR2113(S)PbF HIGH AND LOW SIDE DRIVER .
The IR2110/IR2113 are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels.

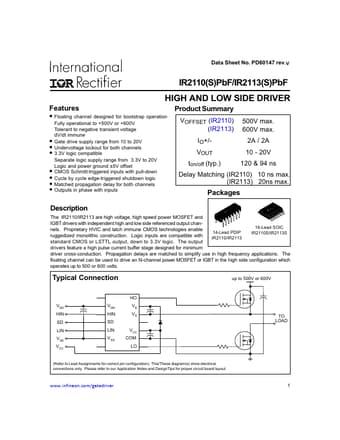

datasheet Preview Page 1 from Datasheet4u.com

IR2110SPBF_InternationalRectifier.pdf

IR2110SPBF Datasheet Preview — Preview of IR2110SPBF PDF

Datasheet Details

Part number:

IR2110SPBF

Manufacturer:

International Rectifier

File Size:

486.15 KB

Description:

HIGH AND LOW SIDE DRIVER

Features

* Floating channel designed for bootstrap operation Fully operational to +500V or +600V Tolerant to negative transient voltage dV/dt immune
* Gate drive supply range from 10 to 20V
* Undervoltage lockout for both channels
* 3.3V logic compatible Separate logic supply

Applications

* The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 500 or 600 volts. Typical Connection up to 500V or 600V HO VDD VDD VB HIN HIN VS SD SD LIN LIN VCC VSS VSS COM VCC LO (Refer to Lead Assignments for correct pi
