IR2130D Datasheet, Driver, International Rectifier

IR2130D Features

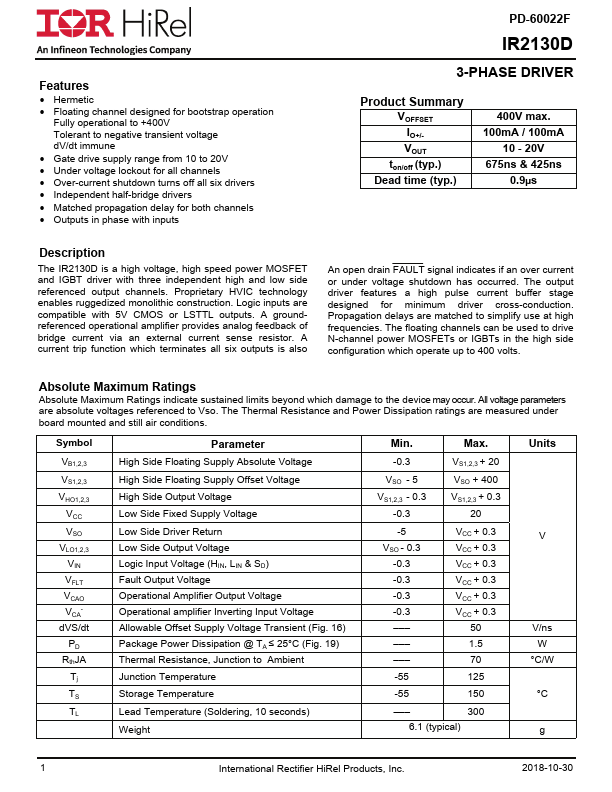

  • Driver n Hermetic n Floatingchanneldesignedforbootstrap 3-PHASE DRIVER Product Summary VOFFSET IO+/VOUT ton/off (typ.) Deadtime (typ.) 400V max. 200 mA / 420 mA 10 - 20V 675 & 425 ns 0.9 µs

PDF File Details

Part number:

IR2130D

Manufacturer:

International Rectifier

File Size:

195.44kb

Download:

📄 Datasheet

Description:

3-phase driver. The IR2130D is a high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output cha

Datasheet Preview: IR2130D 📥 Download PDF (195.44kb)

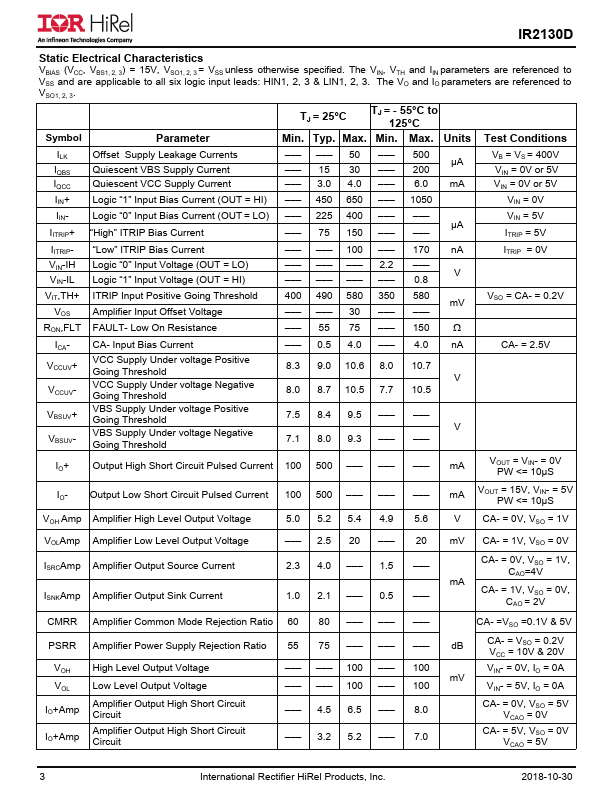

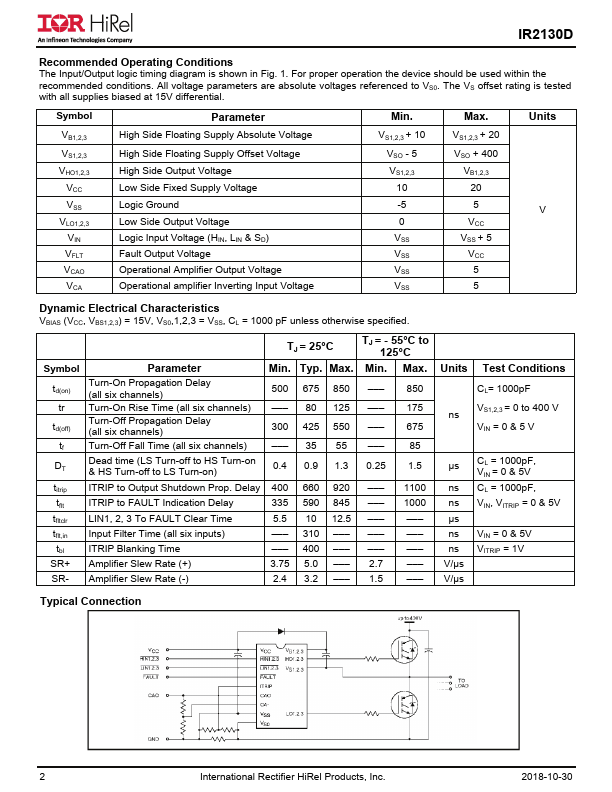

Page 2 of IR2130D Page 3 of IR2130D
