IR2130J, IR2132J Datasheet - International Rectifier

IR2130J 3-PHASE BRIDGE DRIVER

Packages The IR2130/IR2132(J)(S) is a high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels. Proprietary HVIC technology enables ruggedized 28-Lead SOIC monolithic construction. Logic inputs are compatible with CMOS or LSTTL outpu.

IR2130J Features

* Floating channel designed for bootstrap operation

* Fully operational to +600V Tolerant to negative transient voltage dV/dt immune Gate drive supply range from 10 to 20V Undervoltage lockout for all cha

IR2132J-InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IR2130J, IR2132J. Please refer to the document for exact specifications by model.

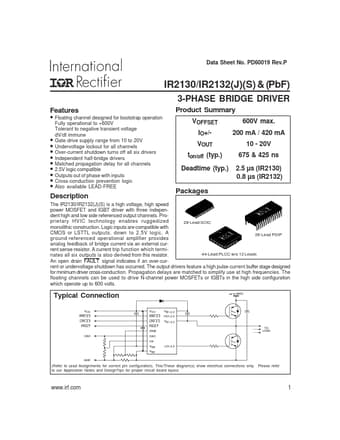

IR2130J Datasheet Preview Page 2 IR2130J Datasheet Preview Page 3

Datasheet Details

Part number:

IR2130J, IR2132J

Manufacturer:

International Rectifier

File Size:

294.29 KB

Description:

3-phase bridge driver.

Note:

This datasheet PDF includes multiple part numbers: IR2130J, IR2132J.
Please refer to the document for exact specifications by model.
