IRAM136-0461G

Integrated Power Hybrid IC

IRAM136-0461G Features

* an input diode rectification bridge and a three-phase inverter, complete with bootstrap diodes, high voltage gate driver IC, current shunt resistor and temperature sensor. This high performance AC motor-driver is housed in a compact single-in-line isolated package for a very simple design. The inter

IRAM136-0461G General Description

IRAM136-0461G Series 4A, 600V International Rectifier’s IRAM136-0461G is an Integrated Power Module developed and optimized for electronic motor control in energy saving applications. Targeting the sub 300W three-phase motor drive applications, such as fan or refrigerator compressor drives, this m.

IRAM136-0461G Datasheet (395.41 KB)

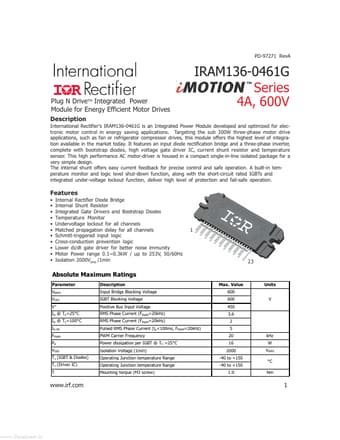

Preview of IRAM136-0461G PDF

Datasheet Details

Part number:

IRAM136-0461G

Manufacturer:

International Rectifier

File Size:

395.41 KB

Description:

Integrated power hybrid ic.
