IRF1503SPBF, IRF1503LPBF Power MOSFET

IRF1503SPBF Description

PD - 95432A Typical Applications l Industrial Motor Drive IRF1503SPbF IRF1503LPbF HEXFET® Power MOSFET D Benefits l l l l l VDSS = 30V RDS(on) = 3.
This Stripe Planar design of HEXFET® Power MOSFETs utilizes the lastest processing techniques to achieve extremely low on-resistance per silicon area.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRF1503SPBF, IRF1503LPBF. Please refer to the document for exact specifications by model.

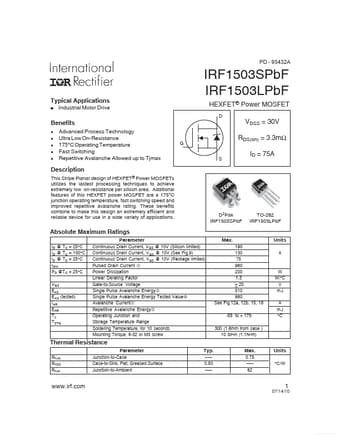

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRF1503SPBF, IRF1503LPBF
Manufacturer
International Rectifier
File Size
355.67 KB
Datasheet
IRF1503LPBF-InternationalRectifier.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRF1503SPBF, IRF1503LPBF.
Please refer to the document for exact specifications by model.
