IRF740AS Power MOSFET

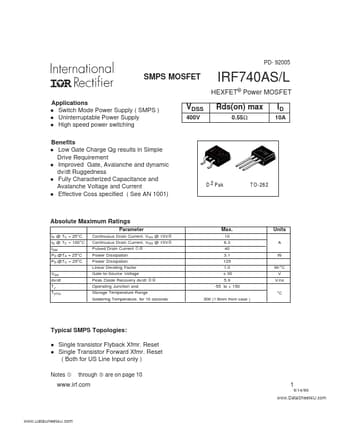

PD- 92005 SMPS MOSFET IRF740AS/L HEXFET® Power MOSFET Applications Switch Mode Power Supply ( SMPS ) l Uninterruptable Power Supply l High speed power switching l VDSS 400V Rds(on) max 0.55Ω ID 10A Benefits Low Gate Charge Qg results in Simple Drive Requirement l Improved Gate, Avalanche and dynamic dv/dt Ruggedness l Fully Characterized Capacitance and Avalanche Voltage and Current l Effective Coss specified ( See AN 1001) l D 2 Pak T O -26 2 Absolute Maximum Ratings Parameter ID @ TC.

IRF740AS Features

* H. 4 H E ATSINK & L EA D D IM E N SIO N S DO N O T IN C LU D E B U R RS . LE AD AS SIG N M E N TS 1 - G ATE 2 - D RA IN 3 - SO U R C E 8 .89 (.35 0) 17 .78 (.70 0) 3.81 (.1 5 0) 2.0 8 (.08 2) 2X 2.5 4 (.100 ) 2X Part Marking Information D2Pak IN TE R N A TIO N A L R E C T IF IE R LO G O A S S
