IRF7480MTRPBF Datasheet - International Rectifier

IRF7480MTRPBF - Power MOSFET

Application  Brushed Motor drive applications  BLDC Motor drive applications Battery powered circuits  Half-bridge and full-bridge topologies  Synchronous rectifier applications  Resonant mode power supplies  OR-ing and redundant power switches  DC/DC and AC/DC converters  DC/AC Inverters Benefits  Improved Gate, Avalanche and Dynamic dv/dt Ruggedness  Fully Characterized Capacitance and Avalanche SOA  Enhanced body diode dv

IRF7480MTRPBF Features

* -Source Voltage (V) Fig 12. Typical Coss Stored Energy RDS(on), Drain-to -Source On Resistance (m) 4.5 4.0 Vgs = 5.5V Vgs = 6.0V Vgs = 7.0V 3.5 Vgs = 8.0V Vgs = 10V 3.0 2.5 2.0 1.5 1.0 0.5 0 20 40 60 80 100 120 140 160 180 200 ID, Drain Current (A) Fig 13. Typical On-Resistance vs. Drai

IRF7480MTRPBF-InternationalRectifier.pdf

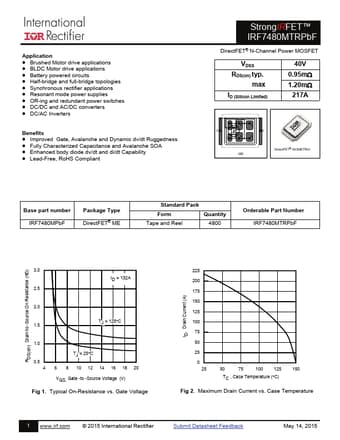

Preview of IRF7480MTRPBF PDF
IRF7480MTRPBF Datasheet Preview Page 2 IRF7480MTRPBF Datasheet Preview Page 3

Datasheet Details

Part number:

IRF7480MTRPBF

Manufacturer:

International Rectifier

File Size:

490.17 KB

Description:

Power mosfet.
