IRFS3107-7PPBF Datasheet - International Rectifier

IRFS3107-7PPBF Power MOSFET

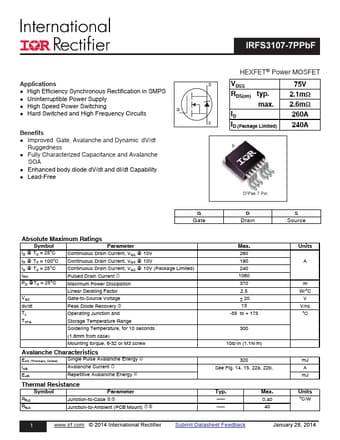

IRFS3107-7PPbF Applications l High Efficiency Synchronous Rectification in SMPS l Uninterruptible Power Supply l High Speed Power Switching l Hard Switched and High Frequency Circuits G Benefits l Improved Gate, Avalanche and Dynamic dV/dt Ruggedness l Fully Characterized Capacitance and Avalanche SOA l Enhanced body diode dV/dt and dI/dt Capability l Lead-Free HEXFET® Power MOSFET D VDSS 75V RDS(on) typ. 2.1mΩ max. 2.6mΩ ID 260A S ID (Package Limited) 240A D S SS S S G D2Pak 7 Pi.

IRFS3107-7PPBF Features

* 150 100 50 Notes on Repetitive Avalanche Curves , Figures 14, 15: (For further info, see AN-1005 at www.irf.com) 1. Avalanche failures assumption: Purely a thermal phenomenon and failure occurs at a temperature far in excess of Tjmax. This is validated for every part type. 2. Safe operation in A
