IRISA6131 Datasheet - International Rectifier

IRISA6131 - INTEGRATED SWITCHER

IRIS-A6131 3.95Ω 100/120±15% IRIS-A6131 is a hybrid IC consisting of a power MOSFET and a controller IC, designed for PRC fly-back converter type SMPS (Switching Mode Power Supply) applications, applicable for PRC operation for small power SMPS.

This IC realizes downsizing and standardizing of

IRIS-A6131 Small sized 8-pin DIP type full molded package, optimum IC for lowheight SMPS Off-timer circuit is provided on the monolithic control IC Low start-up circuit current (10uA max) Package Outline Low circuit current at operation (1.5mA typ) Avalanche energy guaranteed MOSFET with high VDSS The built-in power MOSFET simplifies the surge absorption circuit since the MOSFET guarantees the avalanche energy.

No VDSS de-rating is required.

IRISA6131_InternationalRectifier.pdf

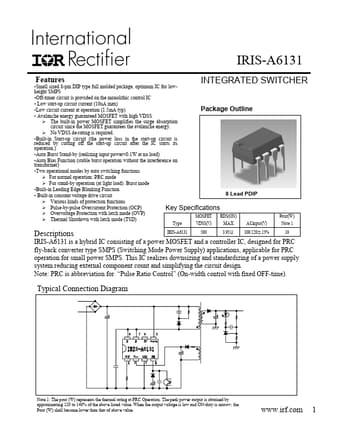

Preview of IRISA6131 PDF
IRISA6131 Datasheet Preview Page 2 IRISA6131 Datasheet Preview Page 3

Datasheet Details

Part number:

IRISA6131

Manufacturer:

International Rectifier

File Size:

396.22 KB

Description:

Integrated switcher.
