IRISA6331 - INTEGRATED SWITCHER

International Rectifier

📥 Download Datasheet

IRISA6331 Datasheet Preview — Preview of IRISA6331 PDF

Datasheet Details

Part number	IRISA6331
Manufacturer	International Rectifier
File Size	379.19 KB
Description	INTEGRATED SWITCHER
Datasheet	IRISA6331_InternationalRectifier.pdf

IRISA6331 Product details

Description

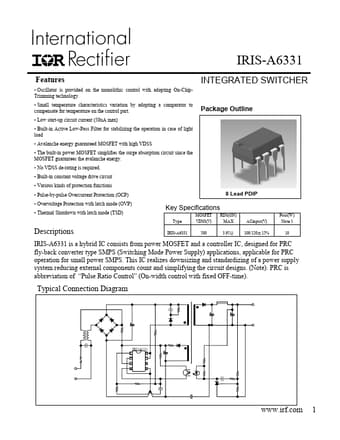

IRIS-A6331 IRIS-A6331 is a hybrid IC consists from power MOSFET and a controller IC, designed for PRC fly-back converter type SMPS (Switching Mode Power Supply) applications, applicable for PRC operation for small power SMPS.This IC realizes downsizing and standardizing of a power supply system reducing external components count and simplifying the circuit designs.(Note).PRC is abbreviation of “Pulse Ratio Control” (On-width control with fixed OFF-time).Typical Connection Diagram IRIS-A

Features

Oscillator is provided on the monolithic control with adopting On-ChipTrimming technology.
Small temperature characteristics variation by adopting a comparator to compensate for temperature on the control part.
Low start-up circuit current (50uA max).
Built-in Active Low-Pass Filter for stabilizing the operation in case of light load.
Avalanche energy guaranteed MOSFET with high VDSS.
The built-in power MOSFET simplifies the surge absorpti.
