IRISMPS1 Datasheet - International Rectifier

IRISMPS1 REFERENCE DESIGN

The IRISMPS2 refererence design is a complete tested power supply circuit. It is designed for a 36-72V DC line input and will provide a 5V, 5A full load DC output. The design uses a flyback converter topology, with an IRIS4007K as the main switch and control device. The initial startup current for t.

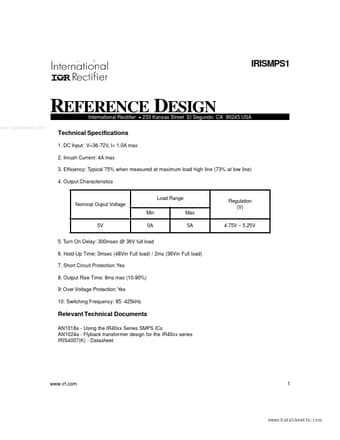

IRISMPS1 REFERENCE DESIGN www.DataSheet4U.com International Rectifier 233 Kansas Street El Segundo CA 90245 USA Technical Specifications 1. DC Input: V=36-72V, I= 1.0A max 2. Inrush Current: 4A max 3. Efficiency: Typical 75% when measured at maximum load high line (73% at low line) 4. Output Characteristics Load Range Nominal Ouput Voltage Min 5V 0A Max 5A 4.75V ~ 5.25V Regulation (V) 5. Turn On Delay: 300msec @ 36V full load 6. Hold-Up Time: 3msec (48Vin Full load) / 2ms (36Vin F.

IRISMPS1 Features

* SMPS1

IRISMPS1 Datasheet (224.85 KB)
