The IRISMPS3 reference design is a complete tested power supply circuit.

It is designed for a universal AC line input and will provide a 15V, 4A full load DC output.

The design uses a flyback converter topology, with an IRIS4013K as the main switch and control device.

The initial start-up current fo

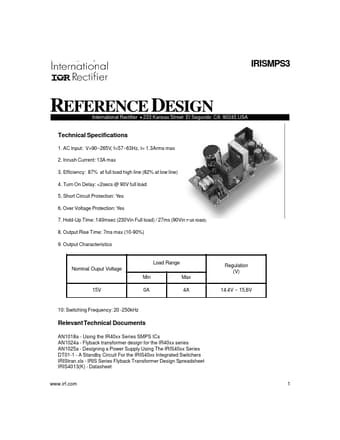

IRISMPS3 REFERENCE DESIGN Technical Specifications 1.

AC Input: V=90~265V, f=57~63Hz, I= 1.3Arms max 2.

Inrush Current: 13A max 3.

Efficiency: 87% at full load high line (82% at low line) 4.

Turn On Delay: <2secs @ 90V full load 5.

Short Circuit Protection: Yes 6.

Over Voltage Protection: Yes 7.

Hold-Up Time: 140msec (230Vin Full load) / 27ms (90Vin Full load) 8.

Output Rise Time: 7ms max (10-90%) 9.
