IRK.136 - (IRK.136/.142/.162) THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR

Product Overview

International Rectifier

📥 Download Datasheet

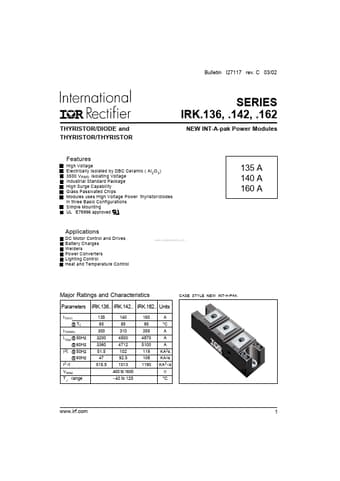

IRK.136 (IRK.136/.142/.162) THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR by International Rectifier - Datasheet Preview — Datasheet preview – IRK.136

Datasheet Details

Part number	IRK.136
Manufacturer	International Rectifier
File Size	409.16 KB
Description	(IRK.136/.142/.162) THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR
Datasheet	IRK.136 Datasheet
Note	This datasheet PDF includes multiple part numbers: IRK.136, IRK-136. Please refer to the document for exact specifications by model.
Additional preview pages of the IRK.136 datasheet.

Product details

Features

High Voltage Electrically Isolated by DBC Ceramic ( Al 2 O 3 ) 3500 V RMS Isolating Voltage Industrial Standard Package High Surge Capability Glass Passivated Chips Modules uses High Voltage Power thyristor/diodes in three Basic Configurations Simple Mounting UL E78996 approved NEW INT-A-pak Power Modules 135 A 140 A 160 A.
