IRK.170 Datasheet, Diode, International Rectifier

IRK.170 Features

  • Diode High voltage Electrically isolated base plate 3000 V RMS isolating voltage Industrial standard package Simplified mechanical designs, rapid assembly High surge capability Large creepage

PDF File Details

Part number:

IRK.170

Manufacturer:

International Rectifier

File Size:

177.08kb

Download:

📄 Datasheet

Description:

(irk. series) scr / scr and scr / diode. This new IRK serie of MAGN-A-paks modules uses high voltage power thyristor/thyristor and thyristor/diode in seven basic configuratio

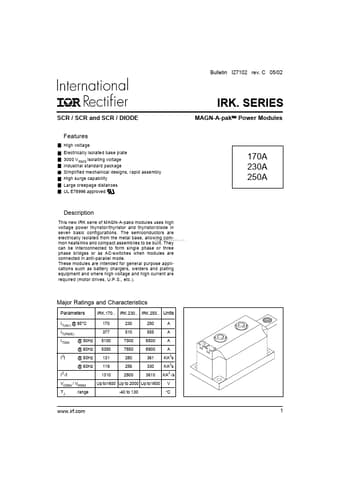

Datasheet Preview: IRK.170 📥 Download PDF (177.08kb)
Page 2 of IRK.170 Page 3 of IRK.170

IRK.170 Application

  • Applications such as battery chargers, welders and plating equipment and where high voltage and high current are required (motor drives, U.P.S., etc
