IRK.230

(IRK. Series) SCR / SCR and SCR / DIODE

IRK.230 Features

* High voltage Electrically isolated base plate 3000 V RMS isolating voltage Industrial standard package Simplified mechanical designs, rapid assembly High surge capability Large creepage distances UL E78996 approved MAGN-A-pak Power Modules 170A 230A 250A Description This new IRK serie of MAGN-A-

IRK.230 General Description

This new IRK serie of MAGN-A-paks modules uses high voltage power thyristor/thyristor and thyristor/diode in seven basic configurations. The semiconductors are electrically isolated from the metal base, allowing comwww.DataSheet4U.com mon heatsinks and compact assemblies to be built. They can be int.

IRK.230 Datasheet (177.08 KB)

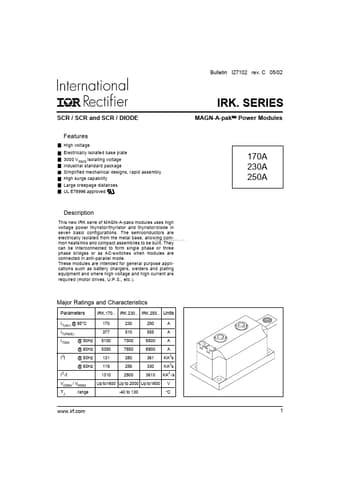

Preview of IRK.230 PDF

Datasheet Details

Part number:

IRK.230

Manufacturer:

International Rectifier

File Size:

177.08 KB

Description:

(irk. series) scr / scr and scr / diode.
