IRK270 Datasheet, Modules, International Rectifier

IRK270 Features

• Modules High voltage Electrically isolated base plate 3000 V RMS isolating voltage Industrial standard package Simplified mechanical designs, rapid assembly High surge capability Large creepage

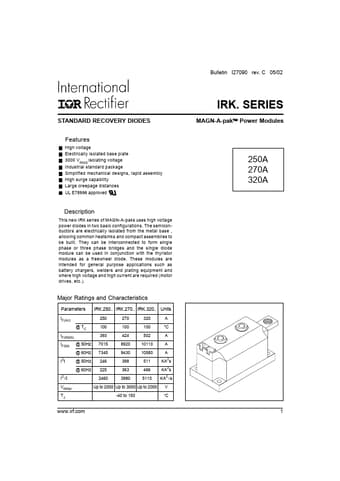

PDF File Details

Part number:

IRK270

Manufacturer:

International Rectifier

File Size:

324.29kb

Download:

📄 Datasheet

Description:

(irkxx0) magn-a-pak power modules. This new IRK series of MAGN-A-paks uses high voltage power diodes in two basic configurations. The semiconductors are electrically is

IRK270 Application

• Applications such as battery chargers, welders and plating equipment and where high voltage and high current are required (motor drives, etc.). Maj
