IRKD270

(IRKxxx0) MAGN-A-pak Power Modules

IRKD270 Features

* High voltage Electrically isolated base plate 3000 V RMS isolating voltage Industrial standard package Simplified mechanical designs, rapid assembly High surge capability Large creepage distances UL E78996 approved 250A 270A 320A Description This new IRK series of MAGN-A-paks uses high voltage pow

IRKD270 General Description

This new IRK series of MAGN-A-paks uses high voltage power diodes in two basic configurations. The semiconductors are electrically isolated from the metal base , allowing common heatsinks and compact assemblies to be built. They can be interconnected to form single phase or three phase bridges and t.

IRKD270 Datasheet (336.34 KB)

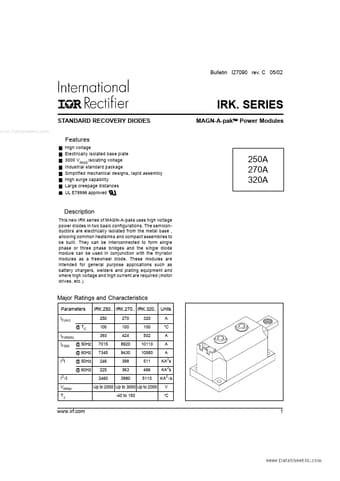

Preview of IRKD270 PDF

Datasheet Details

Part number:

IRKD270

Manufacturer:

International Rectifier

File Size:

336.34 KB

Description:

(irkxxx0) magn-a-pak power modules.
