IRKD56 Datasheet, Diode, International Rectifier

IRKD56 Features

• Diode High Voltage Industrial Standard Package Thick Al metal die and double stick bonding Thick copper baseplate UL E78996 approved 3500VRMS isolating voltage ADD-A-pakTM GEN V Power Module

PDF File Details

Part number:

IRKD56

Manufacturer:

International Rectifier

File Size:

211.75kb

Download:

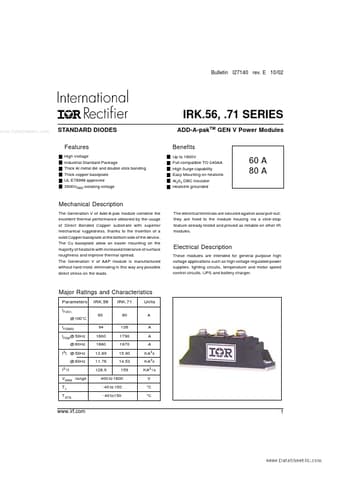

📄 Datasheet

Description:

Standard diode. The Generation V of Add-A-pak module combine the excellent thermal performance obtained by the usage of Direct Bonded Copper substrat

IRKD56 Application

• Applications such as high voltage regulated power supplies, lighting circuits, temperature and motor speed control circuits, UPS and battery charger
