IRKE250

(IRKxxx0) MAGN-A-pak Power Modules

International Rectifier

IRKE250 Features

* High voltage Electrically isolated base plate 3000 V RMS isolating voltage Industrial standard package Simplified mechanical designs, rapid assembly High surge capability Large creepage distances UL E78996 approved 250A 270A 320A Description This new IRK series of MAGN-A-paks uses high voltage pow

IRKE250 General Description

This new IRK series of MAGN-A-paks uses high voltage power diodes in two basic configurations. The semiconductors are electrically isolated from the metal base , allowing common heatsinks and compact assemblies to be built. They can be interconnected to form single phase or three phase bridges and t.

IRKE250 Datasheet (336.34 KB)

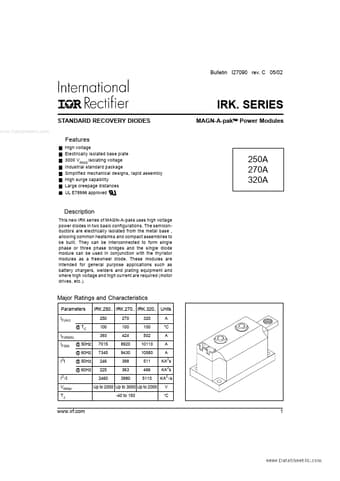

IRKE250 Datasheet Preview — Preview of IRKE250 PDF

Datasheet Details

Part number:

IRKE250

Manufacturer:

International Rectifier

File Size:

336.34 KB

Description:

(irkxxx0) magn-a-pak power modules.
