IRKE56, IRKD56, (IRKxxx) ADD-A-pak GEN V Power Modules

Bulletin I27140 rev.E 10/02 IRK.56, .71 SERIES www.DataSheet4U.com STANDARD DIODES .
The Generation V of Add-A-pak module combine the excellent thermal performance obtained by the usage of Direct Bonded Copper substrate with superior m.

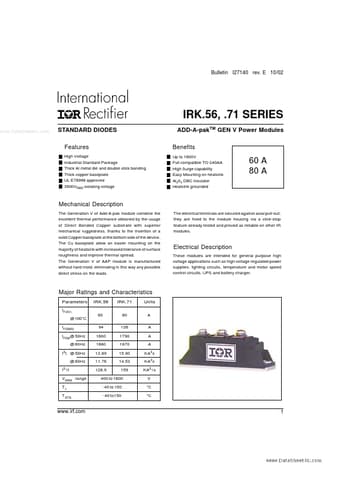

datasheet Preview Page 1 from Datasheet4u.com

IRKD56_InternationalRectifier.pdf

IRKE56 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRKE56, IRKD56. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRKE56, IRKD56

Manufacturer:

International Rectifier

File Size:

211.75 KB

Description:

(IRKxxx) ADD-A-pak GEN V Power Modules

Note:

This datasheet PDF includes multiple part numbers: IRKE56, IRKD56.
Please refer to the document for exact specifications by model.

Features

* High Voltage Industrial Standard Package Thick Al metal die and double stick bonding Thick copper baseplate UL E78996 approved 3500VRMS isolating voltage ADD-A-pakTM GEN V Power Modules Benefits Up to 1600V Full compatible TO-240AA High Surge capability Easy Mounting on heatsink Al203 DBC insulator

Applications

* such as high voltage regulated power supplies, lighting circuits, temperature and motor speed control circuits, UPS and battery charger. Major Ratings and Characteristics Parameters IF(AV) @ 100°C IF(RMS) IFSM @ 50Hz @ 60Hz I t @ 50Hz @ 60Hz I √t VRRM range TJ TSTG 2 2 IRK.56 60 94 1600 1680 12.89
