IRKH26, IRKT26 Datasheet - International Rectifier

IRKH26 THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR

The Generation V of Add-A-pak module combine the excellent thermal performance obtained by the usage of Direct Bonded Copper substrate with superior mechanical ruggedness, thanks to the insertion of a solid Copper baseplate at the bottom side of the device. The Cu baseplate allow an easier mounting .

IRKH26 Features

* High Voltage Industrial Standard Package Thick Al metal die and double stick bonding Thick copper baseplate UL E78996 approved 3500VRMS isolating voltage ADD-A-pakTM GEN V Power Modules Benefits Up to 1600V Full compatible TO-240AA High Surge capability Easy Mounting on heatsink Al203 DBC insulato

IRKT26_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRKH26, IRKT26. Please refer to the document for exact specifications by model.

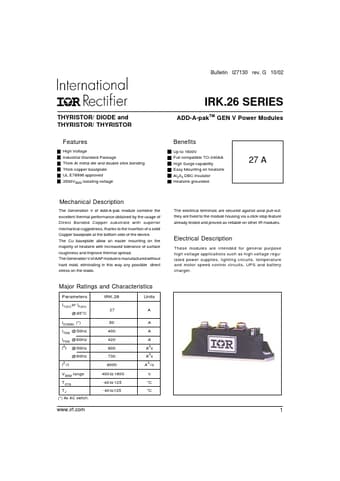

IRKH26 Datasheet Preview Page 2 IRKH26 Datasheet Preview Page 3

Datasheet Details

Part number:

IRKH26, IRKT26

Manufacturer:

International Rectifier

File Size:

146.94 KB

Description:

Thyristor/ diode and thyristor/ thyristor.

Note:

This datasheet PDF includes multiple part numbers: IRKH26, IRKT26.
Please refer to the document for exact specifications by model.
