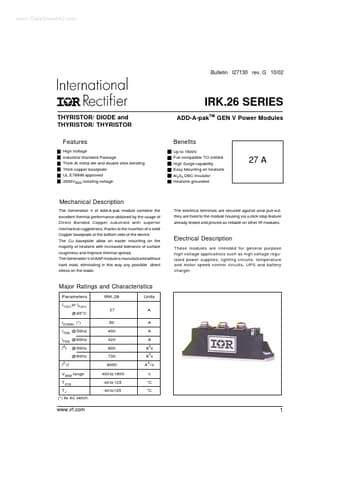

IRKH27 Datasheet, Modules, International Rectifier

IRKH27 Features

• Modules High Voltage Industrial Standard Package Thick Al metal die and double stick bonding Thick copper baseplate UL E78996 approved 3500VRMS isolating voltage ADD-A-pakTM GEN V Power Module

PDF File Details

Part number:

IRKH27

Manufacturer:

International Rectifier

File Size:

177.18kb

Download:

📄 Datasheet

Description:

Add-a-pak-tm gen v power modules. The Generation V of Add-A-pak module combine the excellent thermal performance obtained by the usage of Direct Bonded Copper substrat

IRKH27 Application

• Applications such as high voltage regulated power supplies, lighting circuits, temperature and motor speed control circuits, UPS and battery charger
