IRKJ196 - 1600V Common Anode

Product Overview

International Rectifier

📥 Download Datasheet

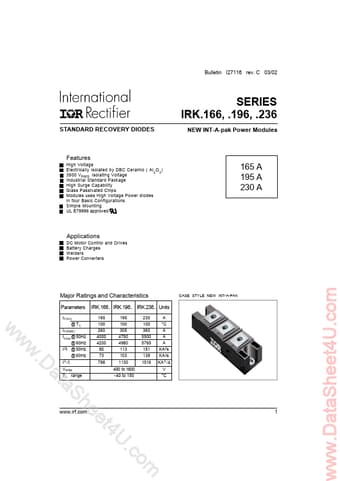

IRKJ196 1600V Common Anode by International Rectifier - Datasheet Preview — Datasheet preview – IRKJ196

Datasheet Details

Part number	IRKJ196
Manufacturer	International Rectifier
File Size	351.33 KB
Description	1600V Common Anode
Datasheet	IRKJ196 Datasheet
Note	This datasheet PDF includes multiple part numbers: IRKJ196, IRKJ166. Please refer to the document for exact specifications by model.
Additional preview pages of the IRKJ196 datasheet.

Product details

Features

High Voltage Electrically Isolated by DBC Ceramic ( Al 2 O 3) 3500 V RMS Isolating Voltage Industrial Standard Package High Surge Capability Glass Passivated Chips Modules uses High Voltage Power diodes in four Basic Configurations Simple Mounting UL E78996 approved 165 A 195 A 230 A.
