IRKJ320

(IRKJ250/270/320) Standard Recovery Diodes

IRKJ320 Features

* High voltage Electrically isolated base plate 3000 V RMS isolating voltage Industrial standard package Simplified mechanical designs, rapid assembly High surge capability Large creepage distances UL E78996 approved MAGN-A-pak Power Modules 250A 270A 320A Description This new IRK series of MAGN-A

IRKJ320 General Description

This new IRK series of MAGN-A-paks uses high voltage power diodes in two basic configurations. The semiconductors are electrically isolated from the metal base , allowing common heatsinks and compact assemblies to be built. They can be interconnected to form single phase or three phase bridges and t.

IRKJ320 Datasheet (322.40 KB)

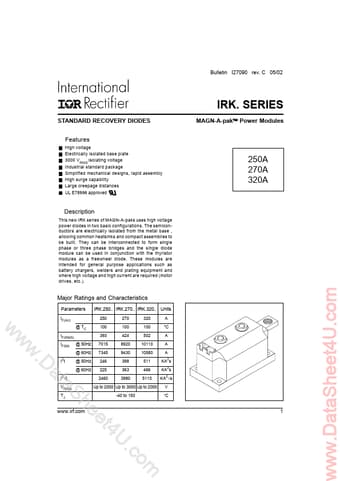

Preview of IRKJ320 PDF

Datasheet Details

Part number:

IRKJ320

Manufacturer:

International Rectifier

File Size:

322.40 KB

Description:

(irkj250/270/320) standard recovery diodes.
