IRKT57 Datasheet, Thyristor, International Rectifier

IRKT57 Features

• Thyristor High Voltage Industrial Standard Package Thick Al metal die and double stick bonding Thick copper baseplate UL E78996 approved 3500VRMS isolating voltage ADD-A-pakTM GEN V Power Module

PDF File Details

Part number:

IRKT57

Manufacturer:

International Rectifier

File Size:

271.08kb

Download:

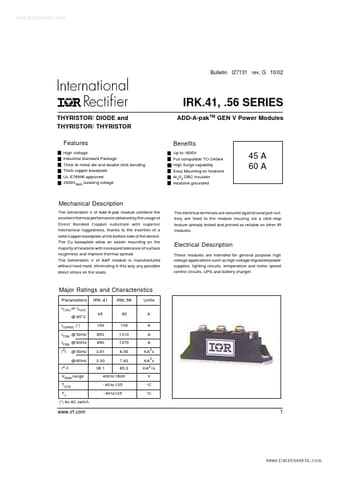

📄 Datasheet

Description:

(irkt41 - irkt57) thyristor/ diode and thyristor/ thyristor. The Generation V of Add-A-pak module combine the excellent thermal performance obtained by the usage of Direct Bonded Copper substrat

IRKT57 Application

• Applications such as high voltage regulated power supplies, lighting circuits, temperature and motor speed control circuits, UPS and battery charger
