IRKT71 Datasheet - International Rectifier

IRKT71 (IRKT71 / IRKT91) THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR

The Generation V of Add-A-pak module combine the excellent thermal performance obtained by the usage of Direct Bonded Copper substrate with superior mechanical ruggedness, thanks to the insertion of a solid Copper baseplate at the bottom side of the device. The Cu baseplate allow an easier mounting .

IRKT71 Features

* High Voltage Industrial Standard Package Thick Al metal die and double stick bonding Thick copper baseplate UL E78996 approved 3500VRMS isolating voltage ADD-A-pakTM GEN V Power Modules Benefits Up to 1600V Full compatible TO-240AA High Surge capability Easy Mounting on heatsink Al203 DBC insulato

IRKT71_InternationalRectifier.pdf

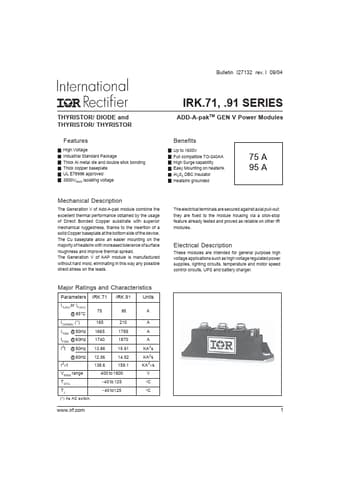

Preview of IRKT71 PDF
IRKT71 Datasheet Preview Page 2 IRKT71 Datasheet Preview Page 3

Datasheet Details

Part number:

IRKT71

Manufacturer:

International Rectifier

File Size:

319.39 KB

Description:

(irkt71 / irkt91) thyristor/ diode and thyristor/ thyristor.
