IRL3715PbF Datasheet - International Rectifier

IRL3715PbF SMPS MOSFET

PD - 95380 SMPS MOSFET Applications l High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use l High Frequency Buck Converters for Computer Processor Power l Lead-Free Benefits VDSS 20V IRL3715PbF IRL3715SPbF IRL3715LPbF HEXFET® Power MOSFET RDS(on) max 14mΩ ID 54A† l Ultra-Low Gate Impedance l Very Low RDS(on) at 4.5V VGS l Fully Characterized Avalanche Voltage and Current TO-220AB IRL3715 D2Pak IRL3715S TO-262 IRL3715L Absolute Maximum.

IRL3715PbF Features

* s (inches) IRL3715/S/LPbF D2Pak Part Marking Information THIS IS AN IRF530S WITH LOT CODE 8024 ASSEMBLED ON WW02, 2000 IN THE ASSEMBLY LINE "L" Note: "P" in assembly line position indicates "Lead-Free" INT ERNATIONAL RECTIFIER LOGO ASS EMBLY LOT CODE OR F530S PART NUMBER DATE CODE YEAR 0 = 20

IRL3715PbF Datasheet (221.61 KB)

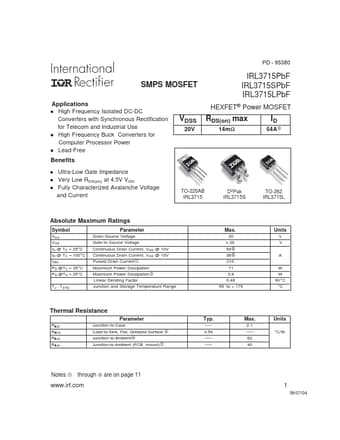

Preview of IRL3715PbF PDF

Datasheet Details

Part number:

IRL3715PbF

Manufacturer:

International Rectifier

File Size:

221.61 KB

Description:

Smps mosfet.
