IRL3715ZPbF Power MOSFET

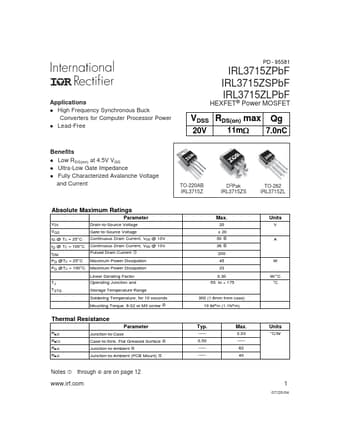

Applications l High Frequency Synchronous Buck Converters for Computer Processor Power l Lead-Free PD - 95581 IRL3715ZPbF IRL3715ZSPbF IRL3715ZLPbF HEXFET® Power MOSFET VDSS RDS(on) max Qg :20V 11m 7.0nC Benefits l Low RDS(on) at 4.5V VGS l Ultra-Low Gate Impedance l Fully Characterized Avalanche Voltage and Current TO-220AB IRL3715Z D2Pak IRL3715ZS TO-262 IRL3715ZL Absolute Maximum Ratings Parameter VDS Drain-to-Source Voltage VGS ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C PD @.

IRL3715ZPbF Features

* rtance of splitting this gate-source charge into two sub elements, Qgs1 and Qgs2, can be seen from Fig 16. Qgs2 indicates the charge that must be supplied by the gate driver between the time that the threshold voltage has been reached and the time the drain current rises to Idmax at which time the d
