IRLML0030, IRLML0030TRPBF Power MOSFET

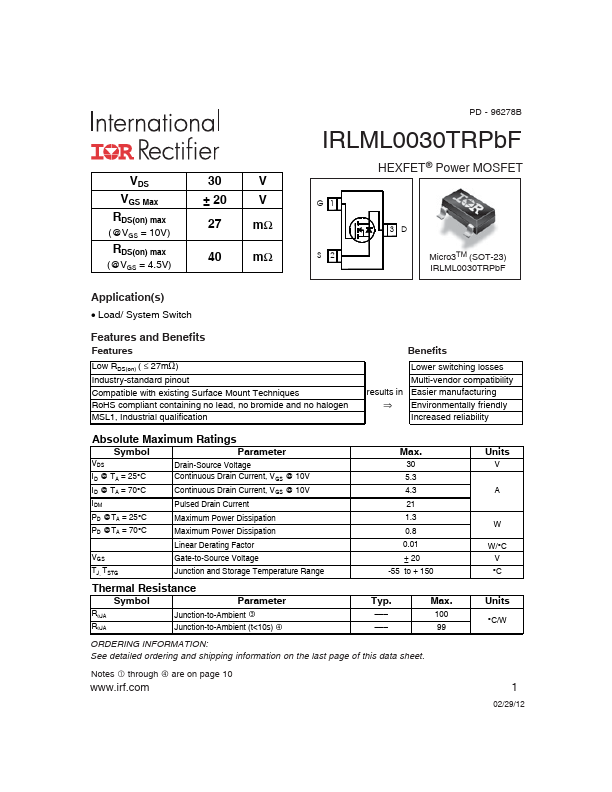

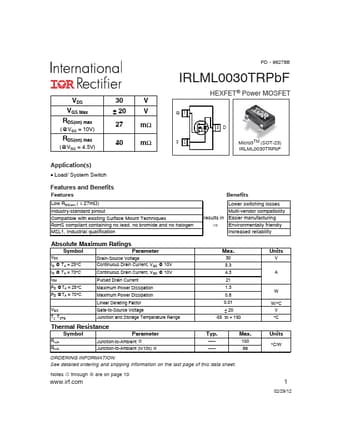

📥 Download Datasheet  Datasheet Preview Page 1

Description

VDS VGS Max RDS(on) max (@VGS = 10V) RDS(on) max (@VGS = 4.5V) 30 V ± 20 V 27 mΩ 40 mΩ PD - 96278B IRLML0030TRPbF HEXFET® Power MOSFET G1 S2.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRLML0030, IRLML0030TRPBF. Please refer to the document for exact specifications by model.

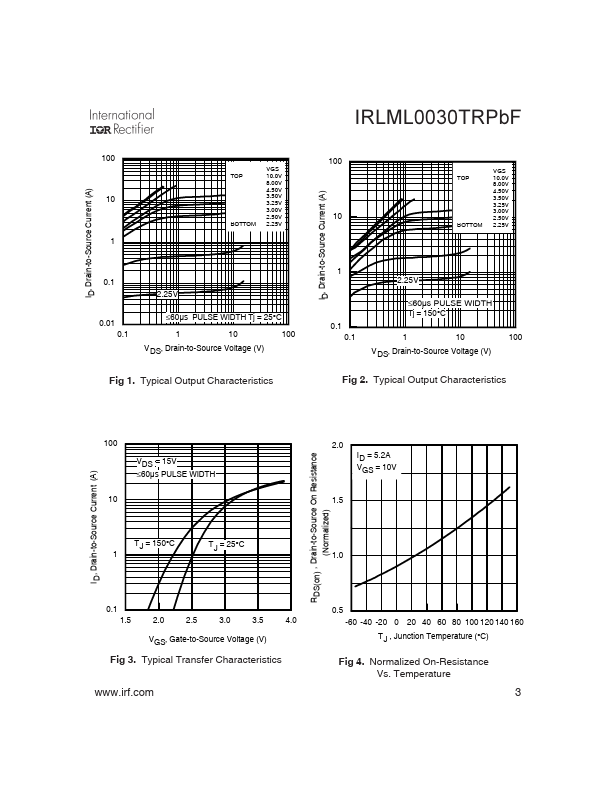

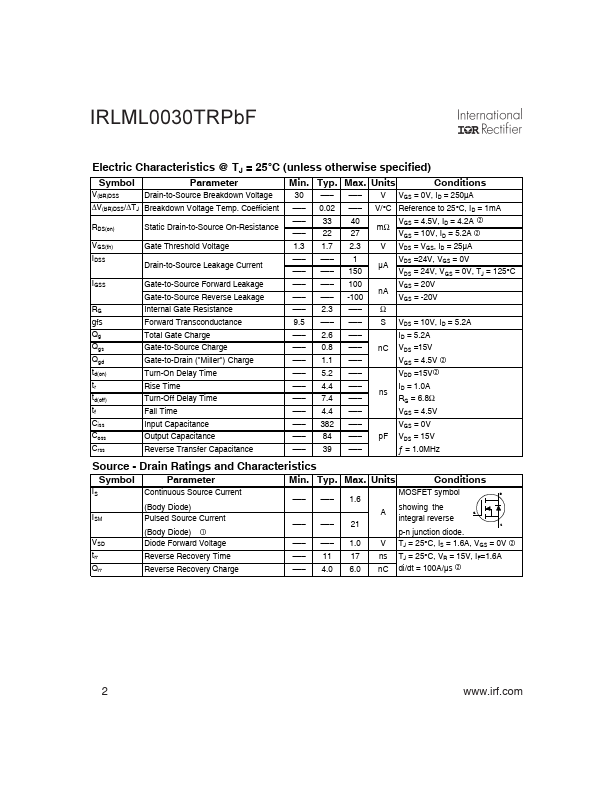

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IRLML0030, IRLML0030TRPBF
Manufacturer
International Rectifier
File Size
193.95 KB
Datasheet
IRLML0030TRPBF_InternationalRectifier.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRLML0030, IRLML0030TRPBF.
Please refer to the document for exact specifications by model.

Features

* Features Low RDS(on) ( ≤ 27mΩ) Industry-standard pinout Compatible with existing Surface Mount Techniques RoHS compliant containing no lead, no bromide and no halogen MSL1, Industrial qualification Benefits Lower switching losses Multi-vendor compatibility results in Easier manufacturing ⇒ Environm
