IRLU3714PbF, IRLR3714PbF Datasheet - International Rectifier

IRLU3714PbF SMPS MOSFET

SMPS MOSFET PD - 95554A IRLR3714PbF IRLU3714PbF Applications l High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use l High Frequency Buck Converters for Computer Processor Power l Lead-Free HEXFET® Power MOSFET VDSS 20V RDS(on) max 20mΩ ID 36A Benefits l Ultra-Low Gate Impedance l Very Low RDS(on) at 4.5V VGS l Fully Characterized Avalanche Voltage and Current D-Pak IRLR3714 I-Pak IRLU3714 Absolute Maximum Ratings Symbol VDS VGS ID @ T.

IRLU3714PbF Features

* ions are shown in millimeters (inches) TR TRR TRL 16.3 ( .641 ) 15.7 ( .619 ) 16.3 ( .641 ) 15.7 ( .619 ) 12.1 ( .476 ) 11.9 ( .469 ) FEED DIRECTION 8.1 ( .318 ) 7.9 ( .312 ) NOTES : 1. CONTROLLING DIMENSION : MILLIMETER. 2. ALL DIMENSIONS ARE SHOWN IN MILLIMETERS ( INCHES ). 3. OUTLINE CONFOR

IRLR3714PbF-InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRLU3714PbF, IRLR3714PbF. Please refer to the document for exact specifications by model.

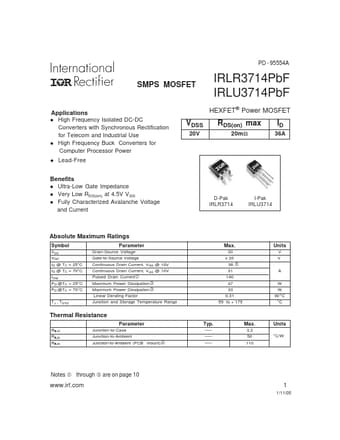

IRLU3714PbF Datasheet Preview Page 2 IRLU3714PbF Datasheet Preview Page 3

Datasheet Details

Part number:

IRLU3714PbF, IRLR3714PbF

Manufacturer:

International Rectifier

File Size:

215.82 KB

Description:

Smps mosfet.

Note:

This datasheet PDF includes multiple part numbers: IRLU3714PbF, IRLR3714PbF.
Please refer to the document for exact specifications by model.
