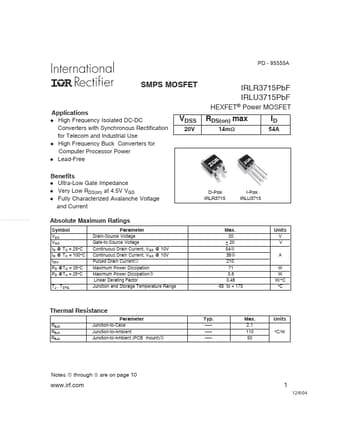

PD - 95555A SMPS MOSFET IRLR3715PbF IRLU3715PbF HEXFET® Power MOSFET Applications l High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use l High Frequency Buck Converters for Computer Processor Power l Lead-Free Benefits Ultra-Low Gate Impedance l Very Low RDS(on) at 4.5V VGS l Fully Characterized Avalanche Voltage and Current l www.DataSheet4U.com VDSS 20V RDS(on) max 14mΩ ID 54A D-Pak IRLR3715 I-Pak IRLU3715 Absolute Maximum Ratings Sym.

IRLU3715PBF Features

* limeters (inches) TR TRR TRL 16.3 ( .641 ) 15.7 ( .619 ) 16.3 ( .641 ) 15.7 ( .619 ) 12.1 ( .476 ) 11.9 ( .469 ) FEED DIRECTION 8.1 ( .318 ) 7.9 ( .312 ) FEED DIRECTION NOTES : 1. CONTROLLING DIMENSION : MILLIMETER. 2. ALL DIMENSIONS ARE SHOWN IN MILLIMETERS ( INCHES ). 3. OUTLINE CONFORMS TO
