IRLU3715ZPBF, IRLR3715ZPBF Datasheet - International Rectifier

IRLU3715ZPBF - HEXFET Power MOSFET

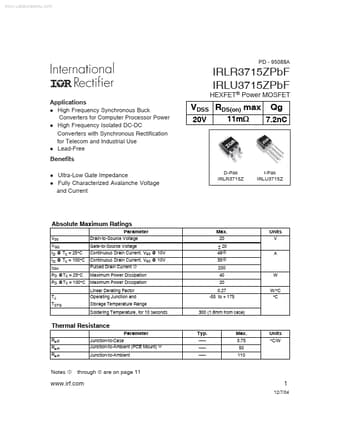

www.DataSheet4U.com Applications l High Frequency Synchronous Buck Converters for Computer Processor Power l High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use l Lead-Free Benefits l l HEXFET® Power MOSFET IRLR3715ZPbF IRLU3715ZPbF 11m: PD - 95088A VDSS RDS(on) max 20V Qg 7.2nC Ultra-Low Gate Impedance Fully Characterized Avalanche Voltage and Current D-Pak IRLR3715Z I-Pak IRLU3715Z Absolute Maximum Ratings Parameter VDS VGS ID @ TC =

IRLU3715ZPBF Features

* × Vg × f ) + ⎛ Qoss × Vin × f ⎞ ⎝ 2 ⎠ ⎞ ⎛ Qgs 2 ⎞ f⎟ + ⎜ I × × Vin × f ⎟ ig ⎠ ⎝ ⎠ This simplified loss equation includes the terms Qgs2 and Qoss which are new to Power MOSFET data sheets. Qgs2 is a sub element of traditional gate-source charge that is included in all MOSFET data sheets. The importa

IRLR3715ZPBF_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRLU3715ZPBF, IRLR3715ZPBF. Please refer to the document for exact specifications by model.
IRLU3715ZPBF Datasheet Preview Page 2 IRLU3715ZPBF Datasheet Preview Page 3

Datasheet Details

Part number:

IRLU3715ZPBF, IRLR3715ZPBF

Manufacturer:

International Rectifier

File Size:

349.04 KB

Description:

Hexfet power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IRLU3715ZPBF, IRLR3715ZPBF.
Please refer to the document for exact specifications by model.
