IRLU3715ZCPBF, IRLR3715ZCPBF Datasheet - International Rectifier

IRLU3715ZCPBF - HEXFET Power MOSFET

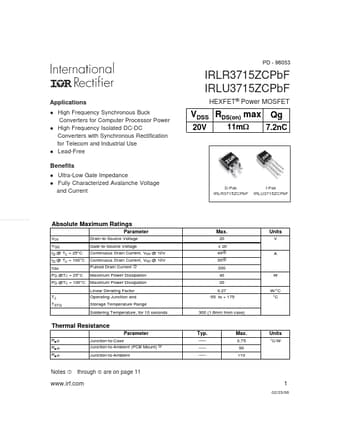

PD - 96053 IRLR3715ZCPbF IRLU3715ZCPbF Applications l l HEXFET® Power MOSFET l High Frequency Synchronous Buck Converters for Computer Processor Power High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use Lead-Free VDSS RDS(on) max 20V 11m: Qg 7.2nC Benefits l l Ultra-Low Gate Impedance Fully Characterized Avalanche Voltage and Current D-Pak IRLR3715ZCPbF I-Pak IRLU3715ZCPbF www.DataSheet4U.com Absolute Maximum Ratings Parameter VDS VG

IRLU3715ZCPBF Features

* ig ⎝ + (Qg × Vg × f ) + ⎛ Qoss × Vin × f ⎞ ⎝ 2 ⎠ ⎞ ⎞ ⎛ Qgs 2 f⎟ + ⎜ I × × Vin × f ⎟ ig ⎠ ⎝ ⎠ This simplified loss equation includes the terms Qgs2 and Qoss which are new to Power MOSFET data sheets. Qgs2 is a sub element of traditional gate-source charge that is included in all MOSFET data sheets.

IRLR3715ZCPBF_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRLU3715ZCPBF, IRLR3715ZCPBF. Please refer to the document for exact specifications by model.
IRLU3715ZCPBF Datasheet Preview Page 2 IRLU3715ZCPBF Datasheet Preview Page 3

Datasheet Details

Part number:

IRLU3715ZCPBF, IRLR3715ZCPBF

Manufacturer:

International Rectifier

File Size:

319.78 KB

Description:

Hexfet power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IRLU3715ZCPBF, IRLR3715ZCPBF.
Please refer to the document for exact specifications by model.
