IRLU3715Z - HEXFET Power MOSFET

Product Overview

International Rectifier

Part number	IRLU3715Z
Manufacturer	International Rectifier
File Size	199.36 KB
Description	HEXFET Power MOSFET
Datasheet	IRLU3715Z Datasheet
Note	This datasheet PDF includes multiple part numbers: IRLU3715Z, IRLR3715Z. Please refer to the document for exact specifications by model.

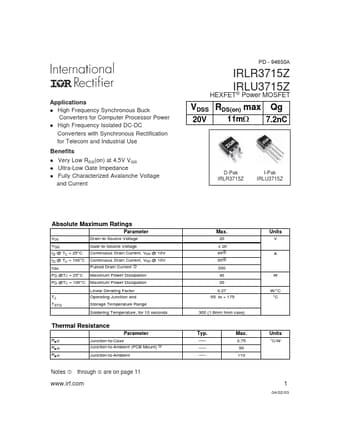

Additional preview pages of the IRLU3715Z datasheet.

ncluded in all MOSFET data sheets. The importance of splitting this gate-source charge into two sub elements, Qgs1 and Qgs2, can be seen from Fig 16. Qgs2 indicates the charge that must be supplied by the gate driver between the time that the threshold voltage has been reached and the time the drain current rises to Idmax at which time the drain voltage begins to change. Minimizing Qgs2 is a critical factor in reducing switching losses in Q1. Qoss is the charge that must be supplied to the outpu.
