IRMCS2033

Low Voltage Sensorless Drive Design Platform

IRMCS2033 Features

* Low cost complete AC sensorless drive design platform IRMCK203 IC for complete sensorless control Simple design with IR2175 current sensing HVIC 350W output power with MOSFET inverter Wide speed range and high speed operation Support any permanent magnet AC motors Low loss/EMI Space Vector PWM No ph

IRMCS2033 General Description

IRMCS2033 is a Sensorless drive design platform for low voltage applications up to 350W output power. The system contains the latest advanced motion control IC, IRMCK203, and the ServoDesignerTM software. The complete B/Ms and schematics are provided so that the user can adapt and tailor the design .

IRMCS2033 Datasheet (648.82 KB)

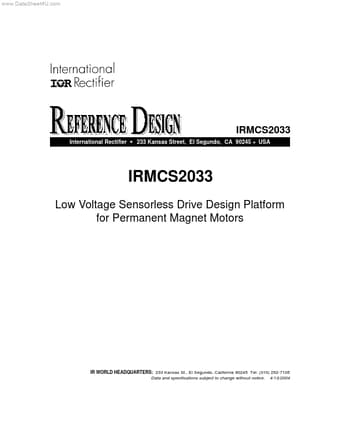

Preview of IRMCS2033 PDF

Datasheet Details

Part number:

IRMCS2033

Manufacturer:

International Rectifier

File Size:

648.82 KB

Description:

Low voltage sensorless drive design platform.
www.DataSheet4U.com IRMCS2033 International Rectifier

* 233 Kansas Street, El Segundo, CA 90245 ! USA IRMCS2033 Low Voltage Sensorless Driv.
