IRMCS2011

Complete Encoder Based Servo Drive Design Platform iMOTION Development System

IRMCS2011 Features

* ! Low cost complete AC servo drive design platform IRMCK201 IC for complete servo control Simple design with IR2175 current sensing HVIC 230V/750W maximum output power with 600V/16A advanced Plug-N-DriveTM IGBT module High bandwidth torque loop response Flexible drive configuration (PMAC or inductio

IRMCS2011 General Description

IRMCS2011 is a complete servo drive design platform for AC servo drive applications up to 750W. The system contains the latest advanced motion control IC, IRMCK201, and the ServoDesignerTM software. The complete B/Ms and schematics are provided so that the user can adapt and tailor the design per ap.

IRMCS2011 Datasheet (700.32 KB)

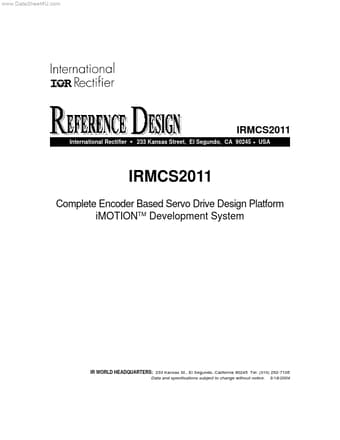

Preview of IRMCS2011 PDF

Datasheet Details

Part number:

IRMCS2011

Manufacturer:

International Rectifier

File Size:

700.32 KB

Description:

Complete encoder based servo drive design platform imotion development system.
www.DataSheet4U.com IRMCS2011 International Rectifier

* 233 Kansas Street, El Segundo, CA 90245 ! USA IRMCS2011 Complete Encoder Based Serv.
