IRS24531DS - FULL-BRIDGE DRIVER

Product Overview

International Rectifier

Datasheet Details

Part number	IRS24531DS
Manufacturer	International Rectifier
File Size	440.97 KB
Description	FULL-BRIDGE DRIVER
Datasheet	IRS24531DS Datasheet
Note	This datasheet PDF includes multiple part numbers: IRS24531DS, IRS2453D. Please refer to the document for exact specifications by model.

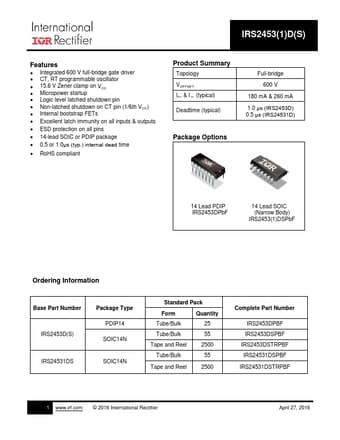

Additional preview pages of the IRS24531DS datasheet.

Product details

Description

Typical Connection Diagram Qualification Information Absolute Maximum Ratings Recommended Operating Conditions Recommended Component Values Electrical Characteristics Functional Block Diagram Input / Output Pin Equivalent Circuit Diagram Lead Definitions Lead Assignments Application Information and Additional Details Package Details Tape and Reel Details Part Marking Information Page 1 3 3 4 5 6 6 7 9 10 11 11 12 15 16 17 2 www.irf.com © 2012 International Rectifier November 28, 2012 IRS24

Features

Integrated 600 V full-bridge gate driver CT, RT programmable oscillator 15.6 V Zener clamp on VCC Micropower startup Logic level latched shutdown pin Non-latched shutdown on CT pin (1/6th VCC) Internal bootstrap FETs Excellent latch immunity on all inputs & outputs ESD protection on all pins 14-lead SOIC or PDIP package 0.5 or 1.0μs (typ. ) internal dead time RoHS compliant Package Options 14 Lead PDIP IRS2453DPbF 14 Lead.
